Description

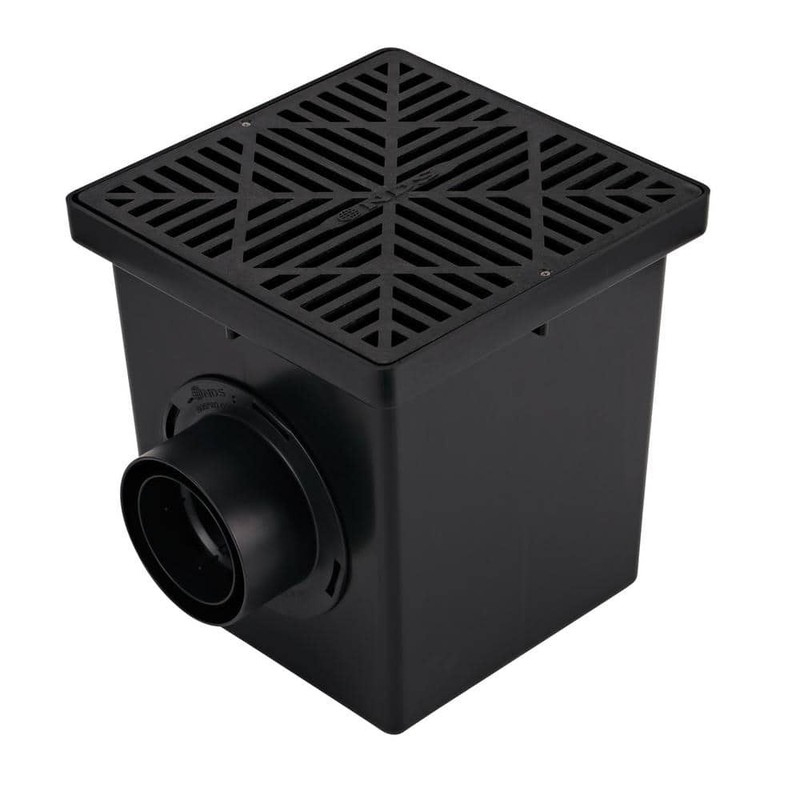

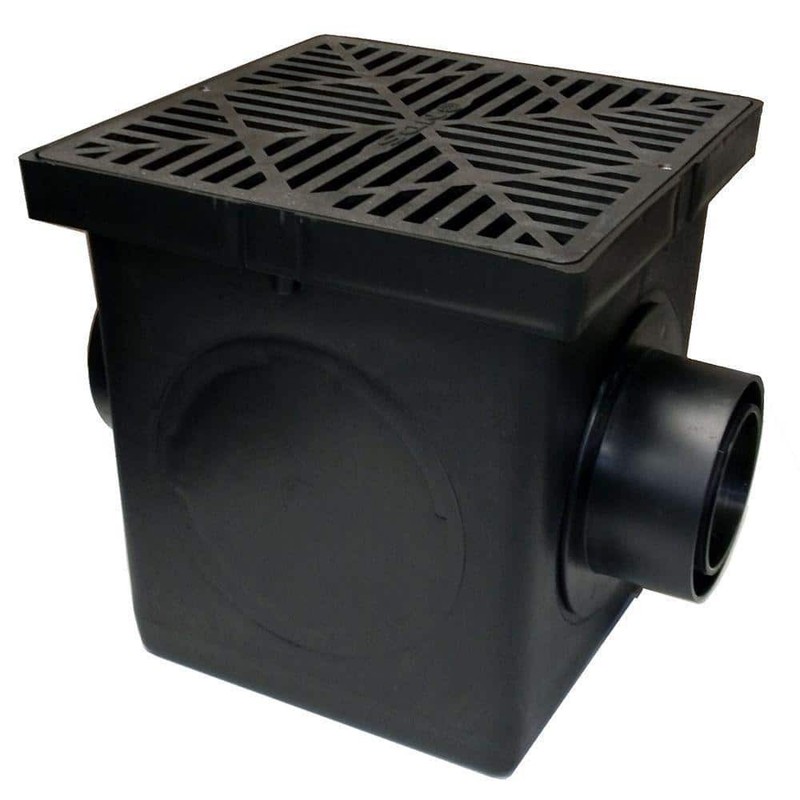

NDS 12 in. x 12 in. Drainage Catch Basin, 2 Opening Kit
About This Product
Trouble with stormwater flooding your lawn, patio, or landscaping? You’re not alone. For many homeowners, that means excess water isn’t able to properly drain. If the problem isn’t fixed, it can lead to a bigger problem-and costly damage to your property. Here’s how to fix it. Drain water where it doesn’t need to be with a stormwater catch basin. The 12 in. Square Catch Basin is ideal for handling heavy flows from lawns, landscaped areas, under downspouts, patios, and walkways. The catch basin, or catch drain, does more than “catch” water-as part of a complete drainage system, it works stealthily underground to direct water to connected drain pipes which carry the water to a discharge point such as a pop-up emitter, or to percolate into the ground with a dry well or infiltration trench. Kit includes a 2-opening basin made of polypropylene, 2 outlet adapters, and 1 plug which fits in either outlet adapter, and polyethylene grate to block leaves and debris from entering the drainage system. The storm drain with grate is rated for NDS Class B loads when properly installed. Built-in basin sump is easy to access and clean. Start now and find the drainage solution for your needs with the free NDS Home Drainage Center tool at ndspro. com/home-drainage. NDS, founded in 1972, is the preferred choice of professionals with proven products, tools, and expert support to help you get the job done right. Make your DIY project a success with NDS, the leader in stormwater management.
Highlights
- Collect stormwater runoff and standing water on your property and direct to drain pipes before it causes costly property damage
- Manage heavy flows of water from lawns, landscaped areas, under downspouts, patios, and walkways
- Connect to 3 in. & 4 in. Sewer and Drain, Single-Wall Corrugated & Triple-Wall Pipes & 4 in. Sch. 40 Pipe using included outlet adapters; additional outlet adapters sold separately for connections to 6 in. and 8 in. Pipes
- 12 in. square grate has an open surface area of 53.1 sq. in. . 162 GPM flow rate for 12 in. square plastic grate
- Rated for NDS Class B loads (up to 175 psi) when properly installed with grate-recommended for medium-duty pneumatic tire traffic, autos, and light trucks at speeds less than 20 mph

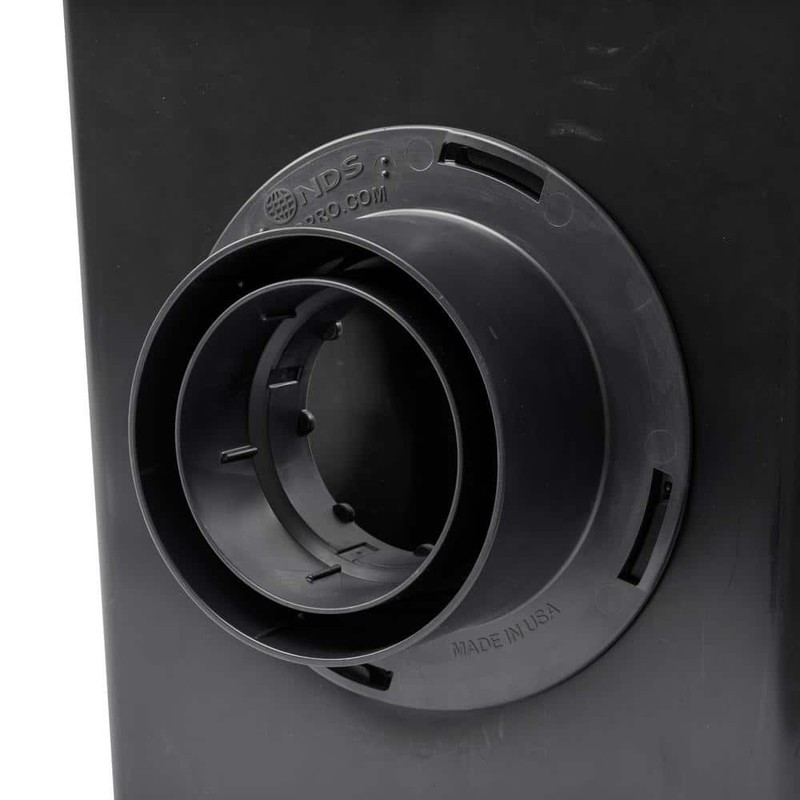

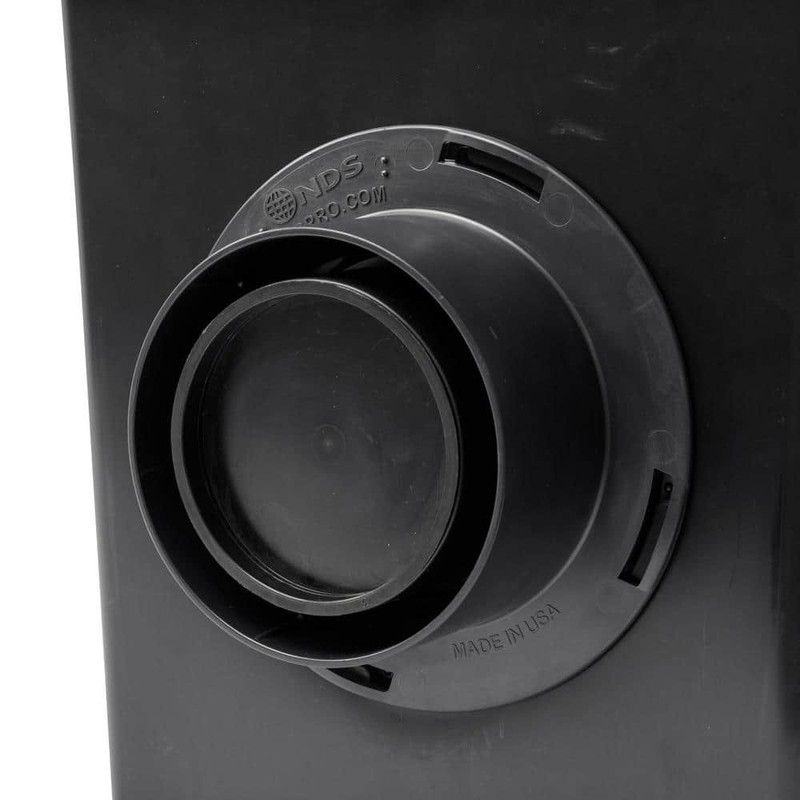

- Outlet adapters provide a secure, soil-tight fit to pipe-no tape or glue required
- Included plug fits inside outlet adapter and seals catch basin opening to direct flow of water

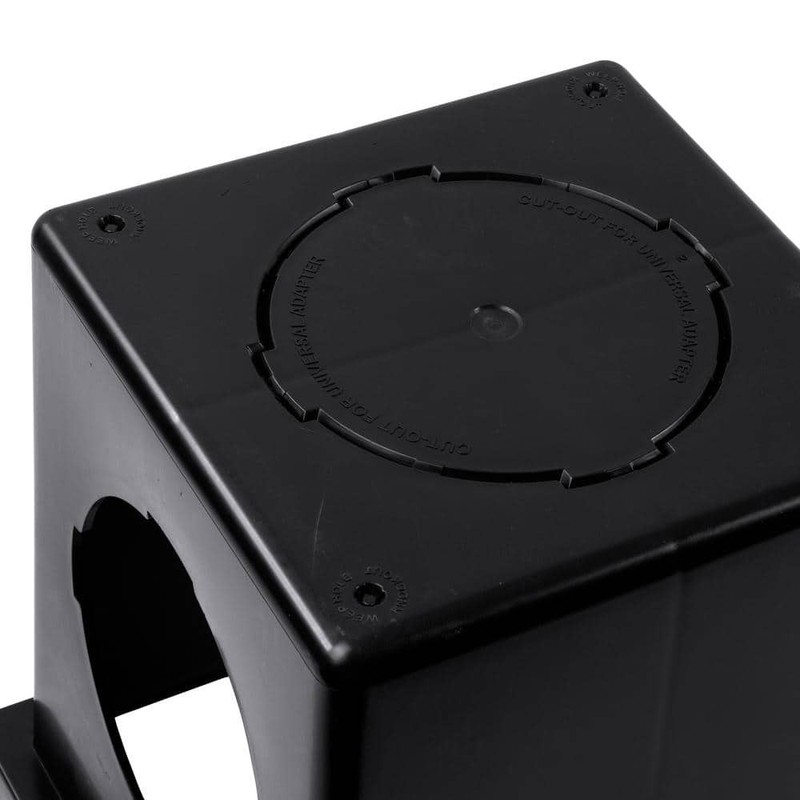

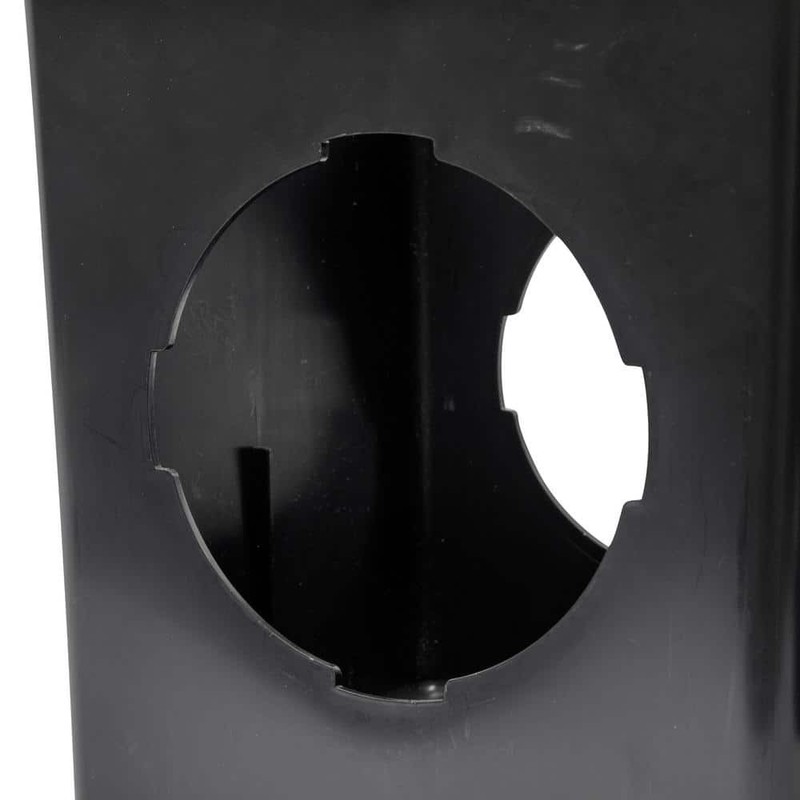

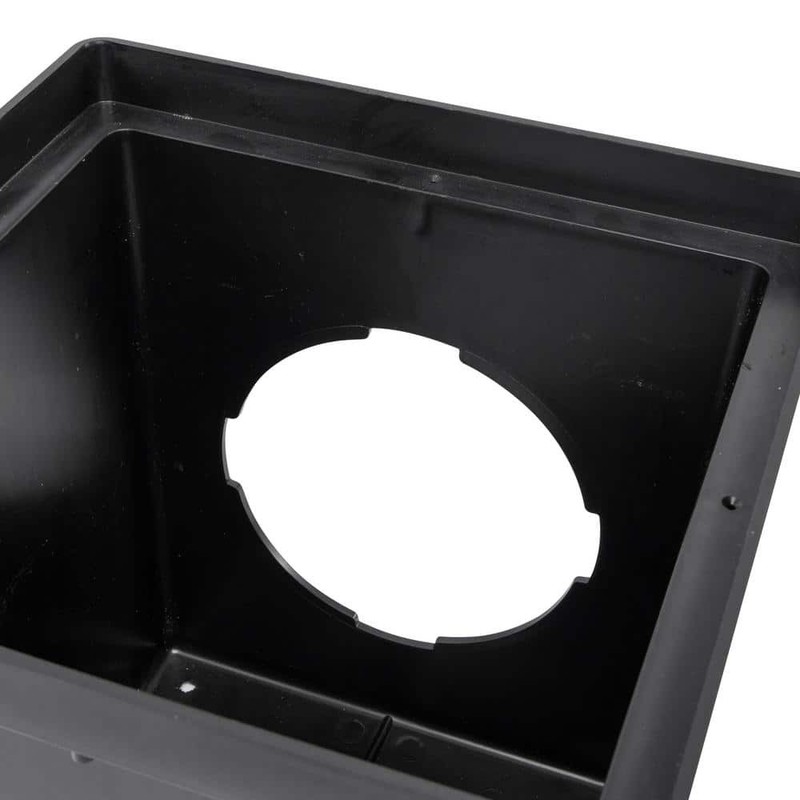

- Keyed openings on basin lock outlet adapters in place

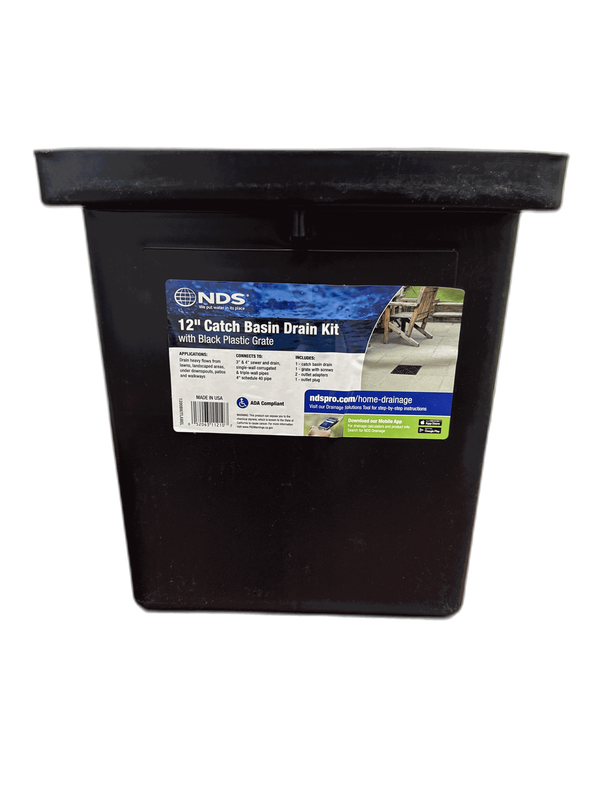

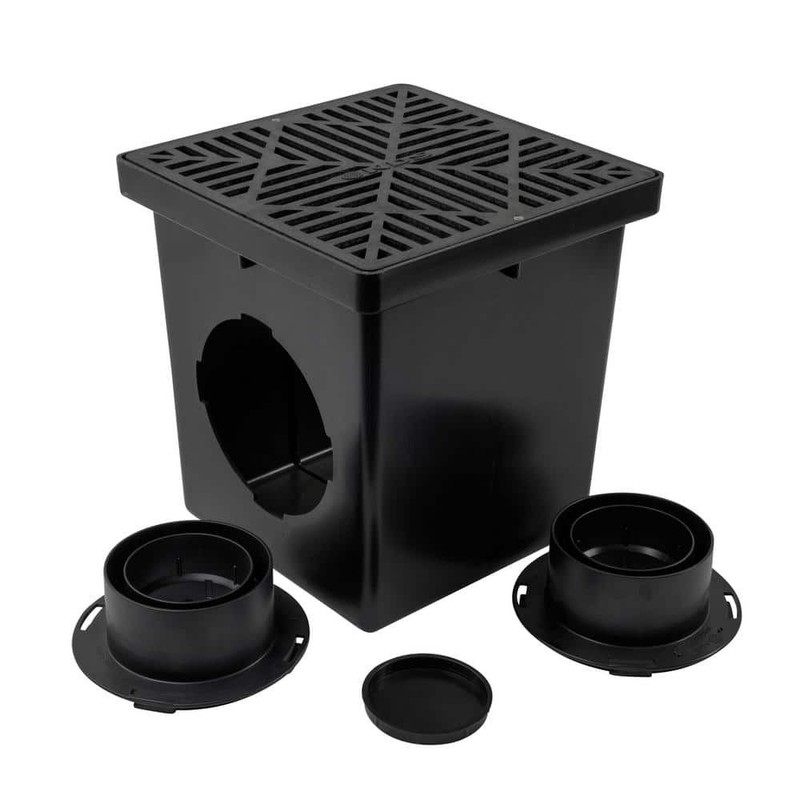

- Kit includes 2-Opening 12 in. Catch Basin, 2 Outlet Adapters, 1 Plug, Plastic Drain Grate

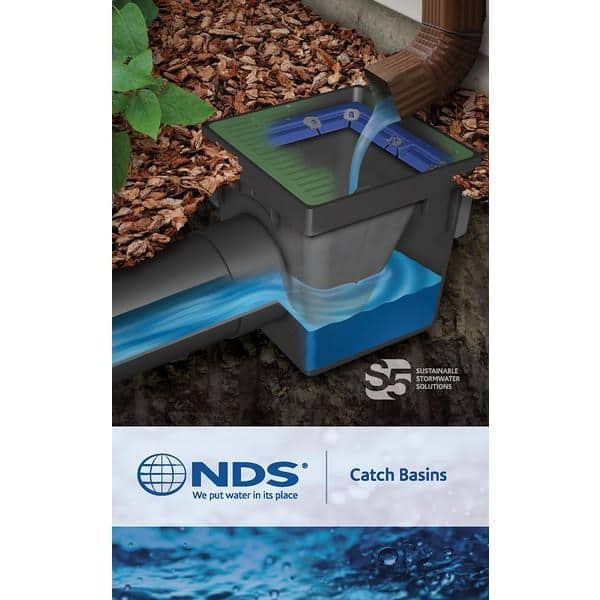

- The catch basin with grate, as part of a complete drainage system, connects to drain pipes to capture surface water and direct it away for proper release downstream
- Lightweight and easy to install
- Built-in sump area collects particles before they can enter the pipeline; easy to access for cleaning
- Catch basin made of polypropylene (PP) using a combination of virgin and recycled content treated with UV inhibitors to prevent fading and cracking. Grate made of high-density polyethylene (HDPE) using a combination of virgin and recycled content treated with UV inhibitors to prevent fading and cracking
- Use with a Pop-Up Drainage Emitter to discharge collected water at a point of release downstream
- Use with a Flo-Well Dry Well System and EZ Drain Gravel-Free French Drain System to detain excess water and slowly release it into the ground
- Onsite stormwater management protects the watershed downstream, and limits excess runoff which can lead to negative impacts such as erosion, pollution, and flooding
- NDS, founded in 1972, is the preferred choice of professionals and the leader in stormwater management with proven products, tools, and support to help you get the job done right
Dimensions
| Max. Compatible Pipe Size (In.) | 6″ | Min. Compatible Pipe Size (In.) | 3″ | Product Depth (in.) | 12.38 in | Product Height (in.) | 12 in | Product Width (in.) | 12 in |
|---|
Specifications
| Color Family | Black | Color/Finish | Black/Matte | Grate Shape | Square | Material | Plastic | Pack Size | 1 | Package Quantity | 1 | Pipe or Fitting Product Type | Accessory | Product Weight (lb.) | 6.75 lb |
|---|
