Description

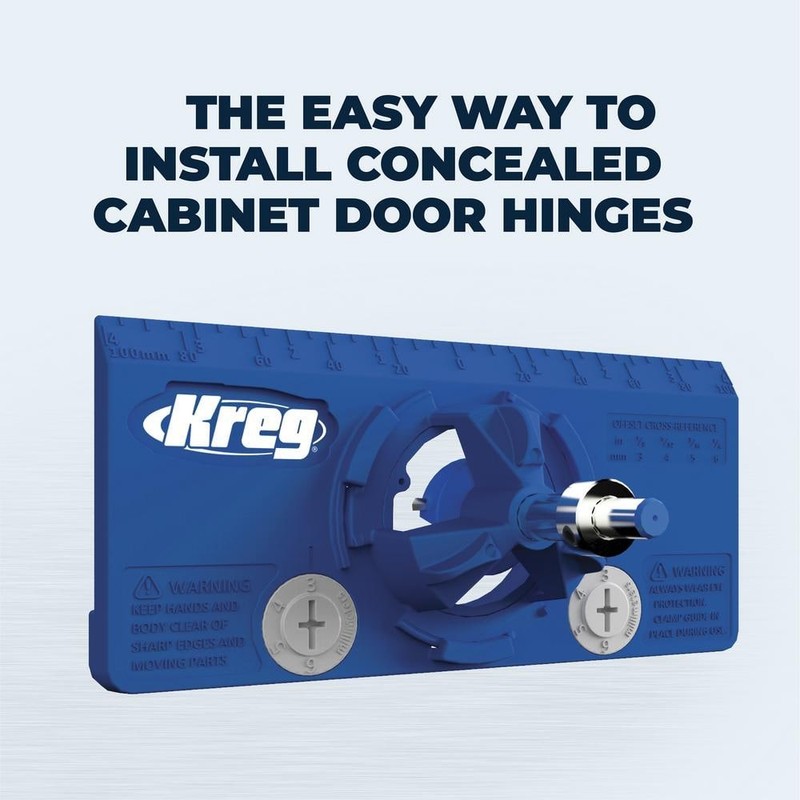

Kreg Concealed Hinge Jig
About This Product

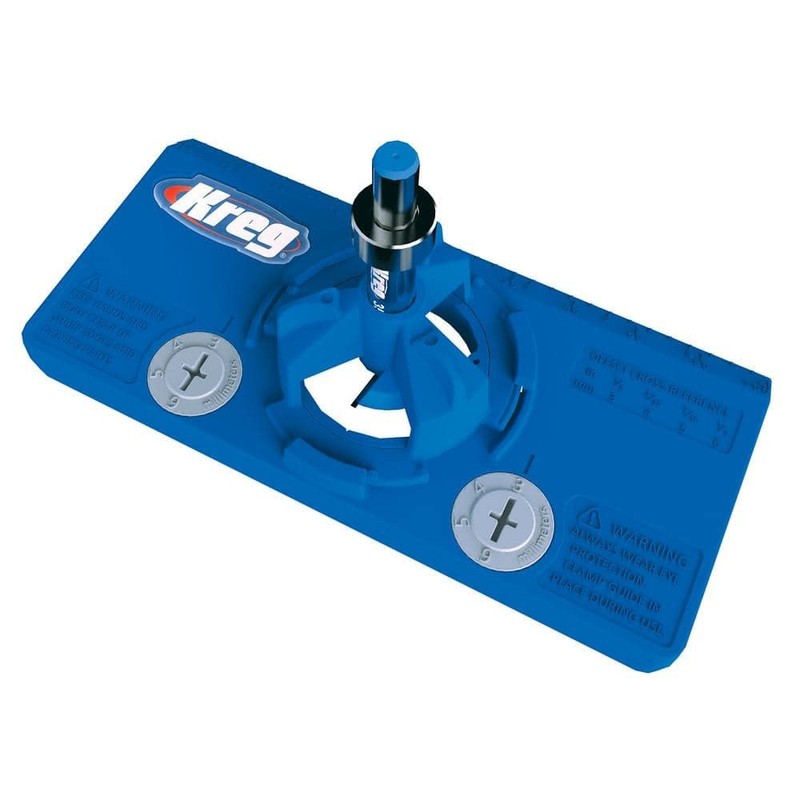

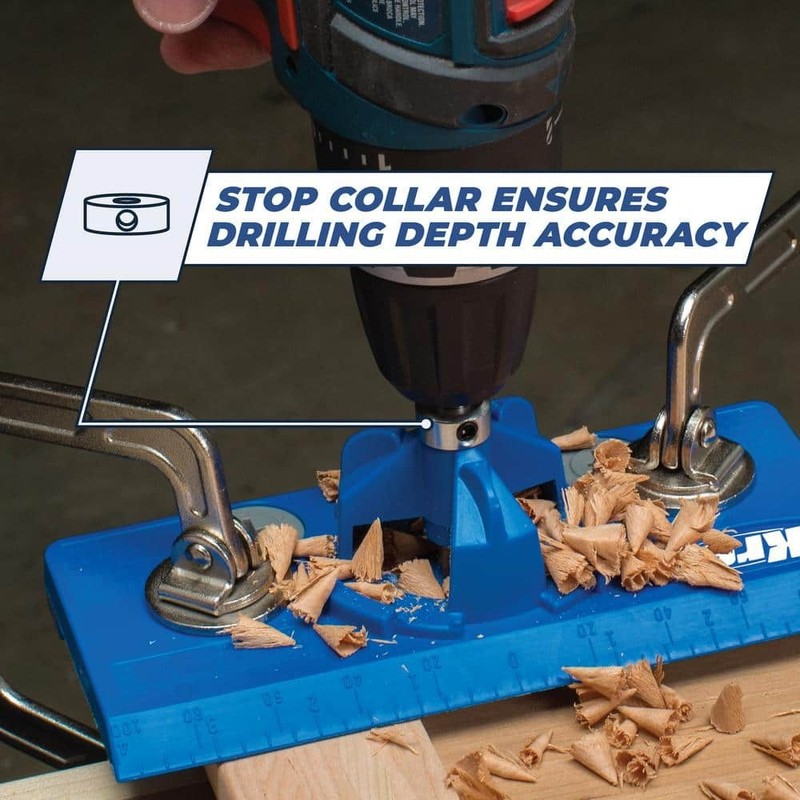

The Concealed Hinge Jig takes the guesswork out of installing cabinet doors using concealed hinges. The Concealed Hinge Jig allows you to drill cup holes for concealed cabinet door hinges (sometimes called Euro hinges) using just a drill. The jig positions an included carbide-tipped bit exactly at the proper position and offset and drills to the perfect depth every time thanks to adept stop collar. The Kreg Concealed Hinge Jig takes the guesswork out of drilling those holes and allows you to do it with nothing more than a drill and the carbide-tipped bit that comes with the jig. Note: A 1/16 in. bit is required to drill for hinge-mounting screws. Not included. The Concealed Hinge Jig consists of a glass-filled nylon base with a hole that receives a drill guide. Indexing cams ensure that the jig positions the bit to drill a hole at the required offset which is dictated by each hinge and a built-in stop collar ensures that the cup depth is correct every time. There are even holes that you can use to guide a bit for hinge screw holes. The Concealed Hinge Jig comes with a high-quality, carbide tipped bit to ensure great results. Just pick out your hinges, look up a few basic mounting instructions that come with them and then set up the Concealed Hinge Jig by adjusting a pair of built-in cams. After that, you are set to drill hinge cup holes using any ordinary drill.
Highlights

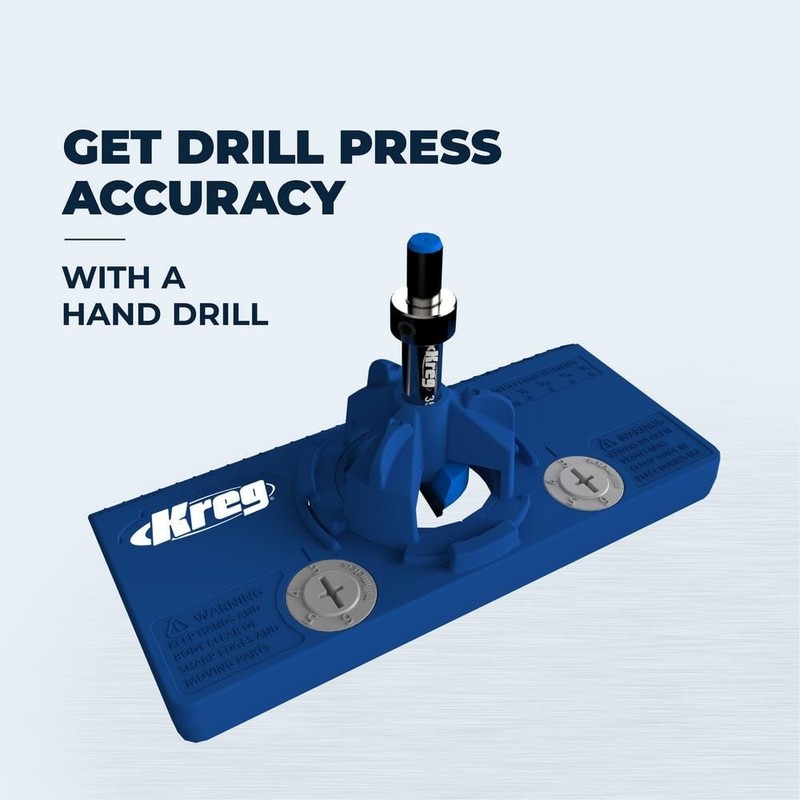

- Make cabinet door installation easy, get drill press accuracy with any hand drill

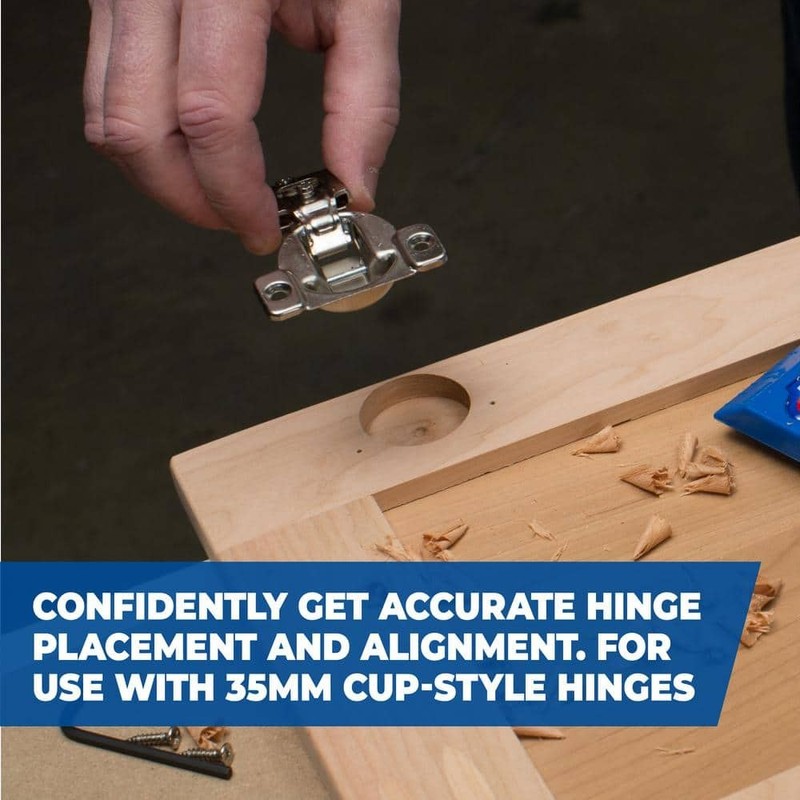

- Accurate hinge positioning with built-in indexing tabs

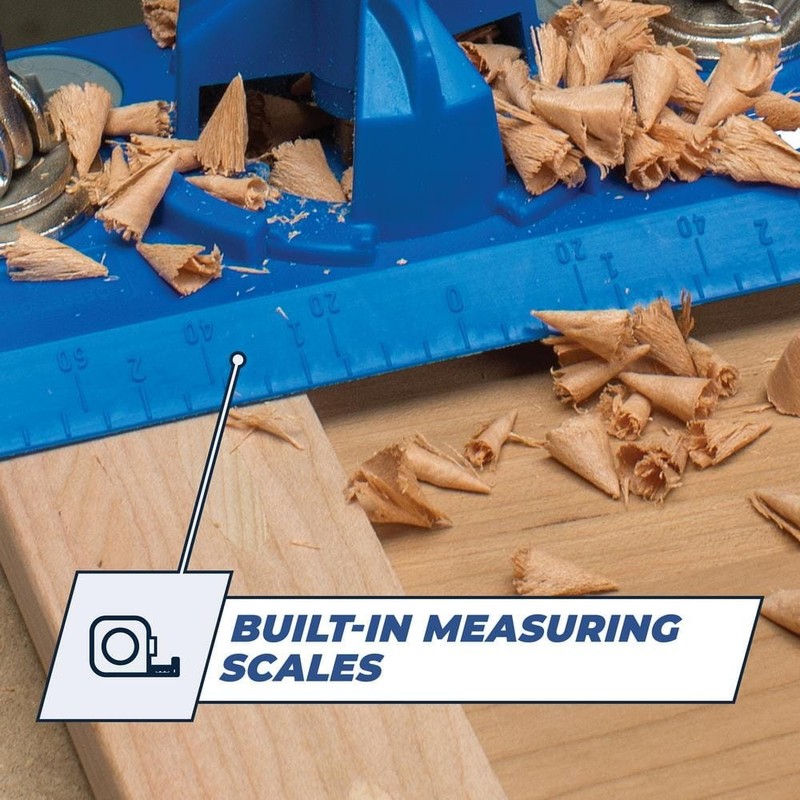

- Repeatable results with built-in measuring scales

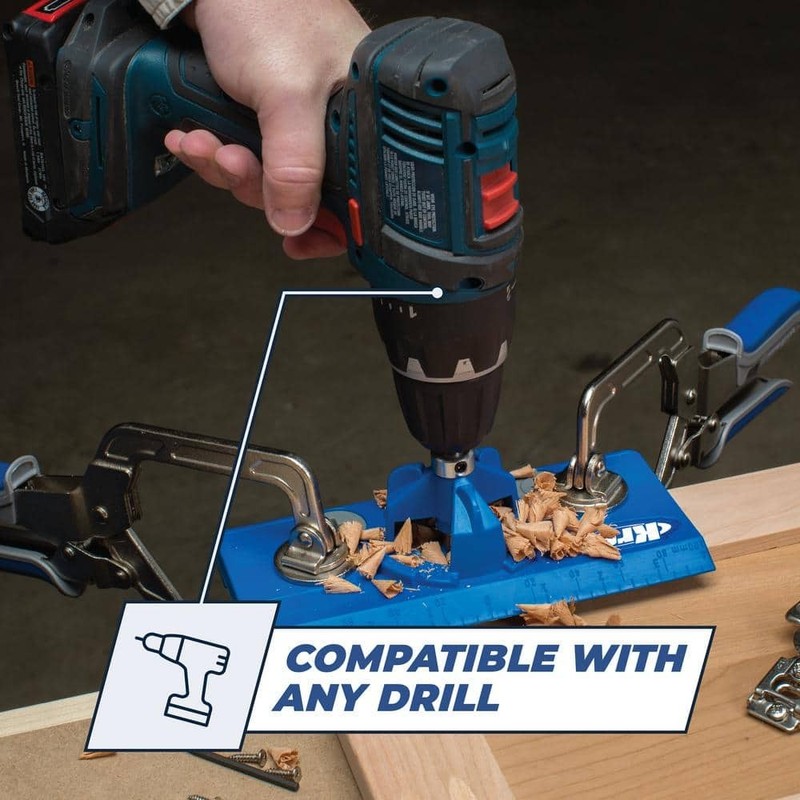

- Simple to use with any drill no special tools needed

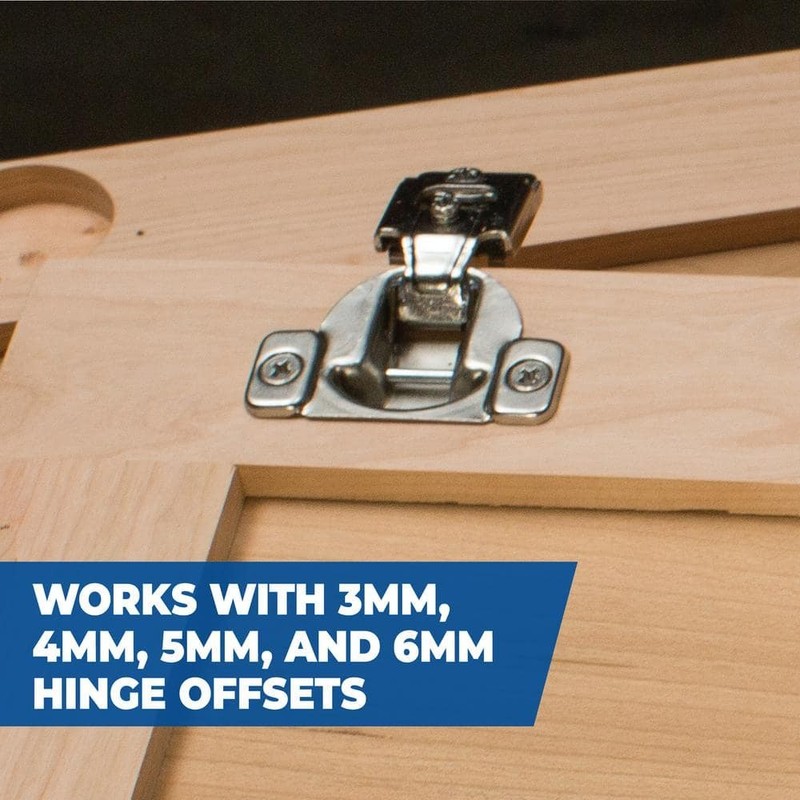

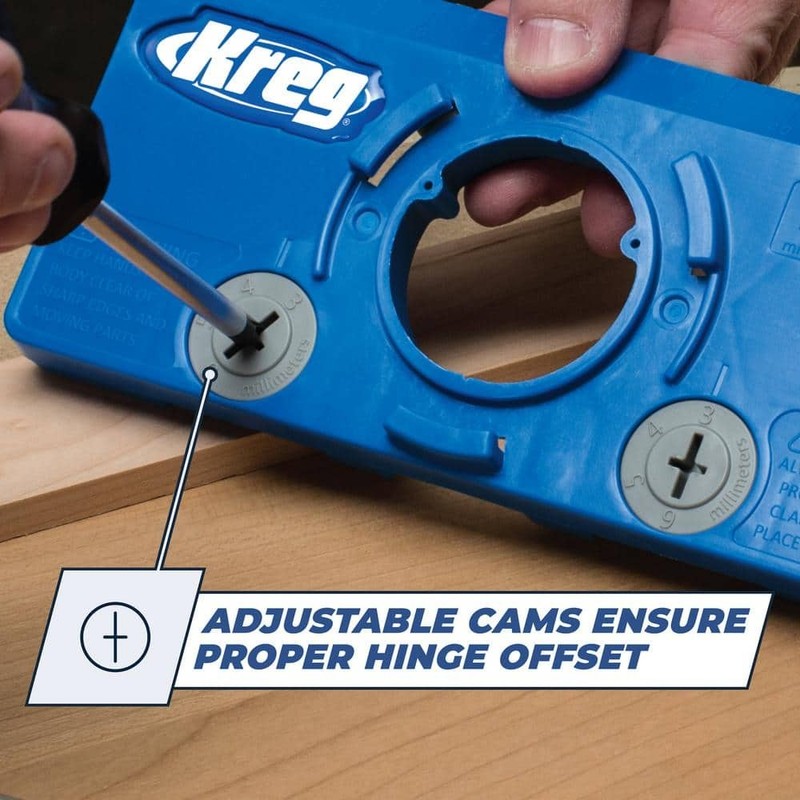

- Adjustable cams ensure proper hinge offset

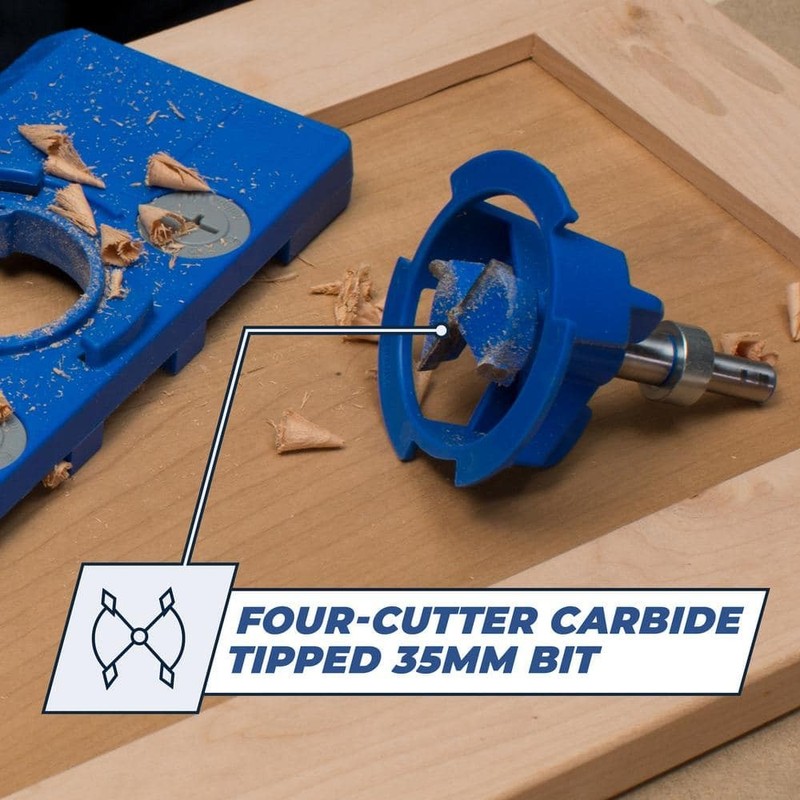

- Durable carbide-tipped drill bit included

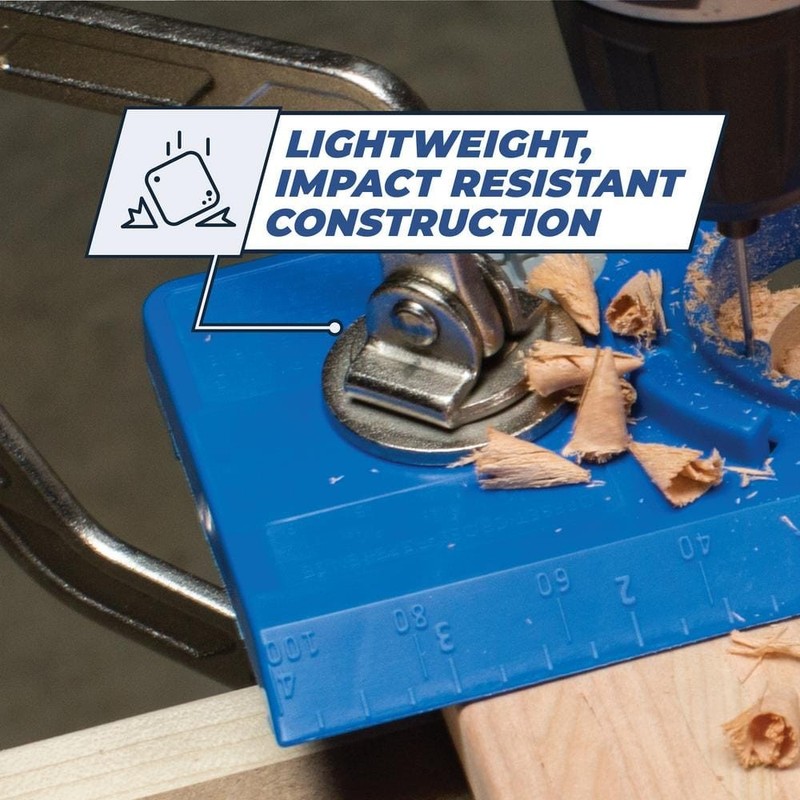

- Strong, lightweight materials for easy handling
Dimensions
| Maximum stock size (in.) | 1.5 | Minimum stock size (in.) | .5 | Product Length (in.) | 8.3 in | Product Width (in.) | 8 in |
|---|
Specifications
| Individual/Set | Individual | Jig Style | Drill | Material | Nylon | Number of Pieces | 1 | Power Tool Accessory Type | Jig | Tools Product Type | Power Tool |
|---|
